Published on August 25th, 2011 | by Alexis Argent

0

Ubiquiti UniFi UAP-Outdoor and UAP-Mini Technical Specifications Released!

4Gon Solutions are pleased to announce that the Technical Specifications for the eagerly awaited, new additions to the Ubiquiti UniFi UAP range have been released. The Ubiquiti UniFi UAP Outdoor model looks to offer great throughput speeds and connectivity at range whilst being weatherproof making it ideal for inclusion within your UniFi Mesh Networks across large areas where an outdoor application is necessary and the Ubiquiti UniFi UAP Mini model comes in at an unbelievable price whilst still being able to offer good performance with a slightly reduced operating range. These two new units are sure to be valuable additions to the Ubiquiti UniFi line-up.

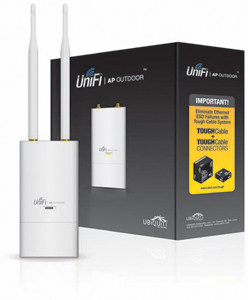

Ubiquiti UniFi UAP OutdoorUbiquiti UniFi UAP Outdoor

Take UniFi outdoors and link 50% further than the base model UAP with UAP-Outdoor. Includes 2 external omni antennas and secondary Ethernet port. 802.11n MIMO, 300+Mbps speeds, 600 ft range.

Ubiquiti UniFi UAP Outdoor Technical Specifications

  • Wi-Fi Standards: 802.11 b/g/n
  • Antennas: 2 x External 6 dBi omni antenna included, 191 mm (Length), 13mm (Diameter)
  • Maximum Power Consumption: 4.6 Watts
  • Max Throughput: 300+ Mbps
  • Max TX Power: 27 dBm
  • Max Range: 600+ ft
  • BSSID: Up to four per radio
  • Wireless Security: WEP, WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i

For more information, please visit our Ubiquiti UniFi UAP Outdoor product page.

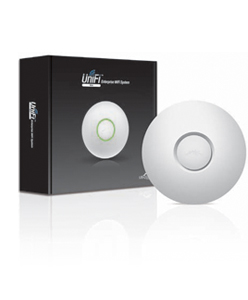

Ubiquiti UniFi UAP MiniUbiquiti UniFi UAP Mini

802.11n UniFi Mini AP, Ubiquiti’s most affordable unit. Capable of 150+Mbps speeds and links of up to 300 ft.

Ubiquiti UniFi UAP Mini Technical Specifications

  • Wi-Fi Standards: 802.11 b/g/n
  • Antennas: 1 integrated
  • Maximum Power Consumption: 3 Watts
  • Max Throughput: 150+ Mbps
  • Max TX Power: 18 dBm
  • Max Range: 300+ ft
  • BSSID: Up to four per radio
  • Wireless Security: WEP, WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i

For more information, please visit our Ubiquiti UniFi UAP Mini product page.

The above packages contain the following content:

  • 1 x Ubiquiti UniFi UAP Unit
  • Wall (& Ceiling for Mini) Mount Adapter Kit
  • Power Over Ethernet Adapter
  • UniFi Controller Software Installation CD

Extend Your CoverageUbiquiti UniFi UAP Deployment Diagram

With the UniFi Controller software running in a NOC or in the cloud, administrators can extend and centrally manage wide areas of indoor and outdoor coverage using any combination of UniFi AP devices. Below are some examples of how UniFi APs can be deployed:

Extend Wirelessly – Take advantage of wireless downlinking. One wired UniFi AP uplink supports 4 wireless downlinks allowing wireless adoption of devices in their default state and real-time changes to network topology.

Manage Hotspots and Control Billing – Use Hotspot to customize portal login pages and bill customers using major credit cards via PayPal. Or, set up a voucher-based authentication system using Hotspot Manager for voucher creation, user administration, guest management and payment refunds.

Ubiquiti UniFi UAP Range Comparison

Ubiquiti UniFi UAP Range Comparison

For more information on the Ubiquiti UniFi UAP range, please visit our Ubiquiti Indoor Wireless and Ubiquiti Outdoor Wireless sections at www.4gon.co.uk
